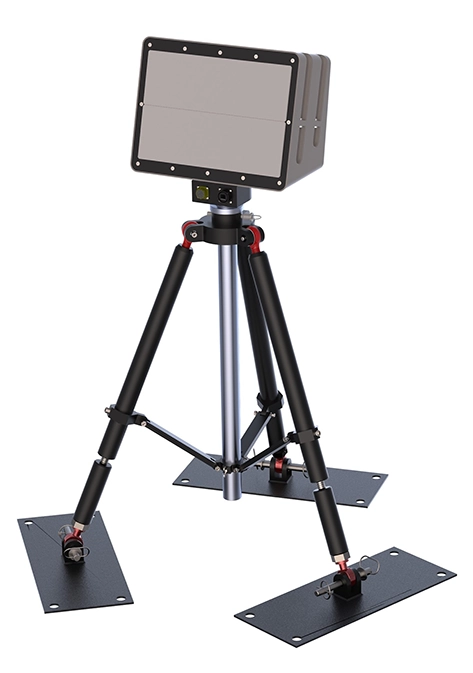

Man Portable Doppler Radar (MPDR)
Compact, Multi Function Phased Array Radar System
Applications
System Specifications
8.5 to 10.5 GHz operating frequency range 10 MHz instantaneous operating bandwidth ± 45 azimuth/elevation scan limits Ruggedized for extreme environments.
- Weather Detection
- Air Surveillance
- Perimeter Security
System Specifications
8.5 to 10.5 GHz operating frequency range 10 MHz instantaneous operating bandwidth ± 45 azimuth/elevation scan limits Ruggedized for extreme environments.
* This system is currently under development. Please contact us for further details.
Modular Tile Based Array Architecture
Allows larger apertures to be created for missions requiring greater sensitivity and range.
Allows larger apertures to be created for missions requiring greater sensitivity and range.
| SPECIFICATION | MPDR (Single Tile) | MPDR x4 (Four Tiles) |
|---|---|---|
| Frequency Range | 8.5 to 10.5 GHz | 8.5 to 10.5 GHz |
| Peak Transmit Power | 40W | 160W |
| Electronic Scan Volume | ± 45° Azimuth and Elevation | ± 45° Azimuth and Elevation |
| Beamwidth | 6° Azimuth 6° Elevation | 3° Azimuth 3° Elevation |
| Weather Detection (< 18 dBZ) | >40 km | >90 km |
| Target Detection (0 dBsm) | 9 km | 22 km |
| Power Consumption | < 500 W | < 1200 W |
