The Solid Advantage

E900 Series Dual Polarization Weather Radar

We Design and Manufacture the Industry's Most Advanced Weather Radar Systems

Designed for long range applications, the E900 Series is the newest addition to EWR’s line of advanced solid state weather radar systems. The E900 Series is available in a wide range of configurations to meet customer’s unique requirements.

The E900 incorporates EWR’s proprietary antenna-mounted RF design which eliminates cumbersome external waveguides and inefficient rotary joints. This design results in lower infrastructure costs, lower maintenance and increased performance when compared to other solid state radars.

Available in either X or C-Band, with antenna sizes ranging from 2.4 to 4.3 meters and transmit power up to 10 kilowatts, the E900 can be built to meet any requirement.

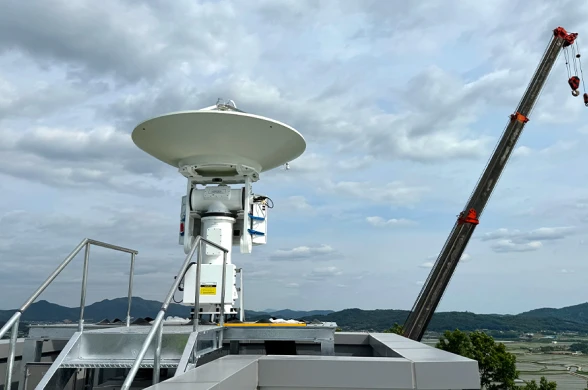

E900 Series Dual Polarization Weather Radar During Installation

Field Proven Solid State Transmitter Technology

Many other radars utilize tube transmitters that require frequent maintenance, high voltage and are prone to failure in difficult environments such as those found in mobile applications. EWR uses long life solid-state transmitters, which are virtually maintenance free and consume far less power. EWR Solid State transmitters are frequency adjustable and can be tuned by the user to avoid interference.

The latest E900 transmitter uses a proprietary multi amplifier design that incorporates multiple “next generation” high power amplifiers to provide an extra measure of redundancy in this critical subsystem. This combined with EWR’s Advanced Single Pulse (ASP) Technology, which virtually eliminates the blind range associated with other solid state radar systems, results in a system that outperforms all other solid-state radars on the market today.

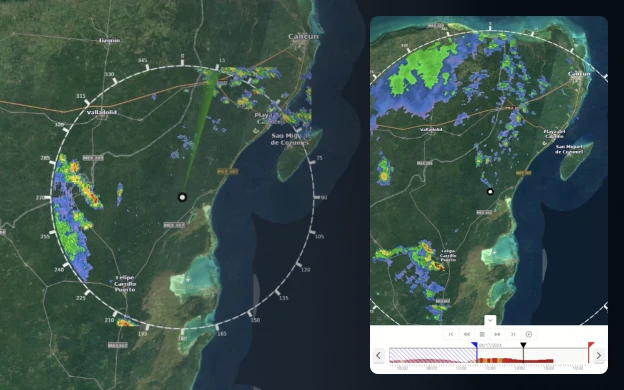

WeatherScout® Watch Tulum, Mexico

Key Advantages

  • Available in X-band and C-band
  • Simultaneous Dual Polarization standard
  • Multiple high resolution Beam Width options
  • Next generation EWR solid state transmitters with up to 10 kilowatts of power
  • Wideband, user adjustable transmit frequency
  • Proprietary multi-amplifier design
  • DSP10 Digital Signal Processor
  • Advanced Single Pulse (ASP) Technology eliminates the radar blind range associated with other solid state radars
  • Proprietary antenna-mounted RF design eliminates inefficient rotary joints and long external waveguide runs for optimal performance
  • Low power consumption and operating costs
  • The most complete suite of meteorological products available including all EWR/NEXRAD Level III
  • Perfect for creating a cost effective network or as a “gap filler” in existing networks
  • Virtually maintenance free, long life design utilizing factory sealed gearboxes and bearings
  • 24/7 365 Day Help Desk Support
