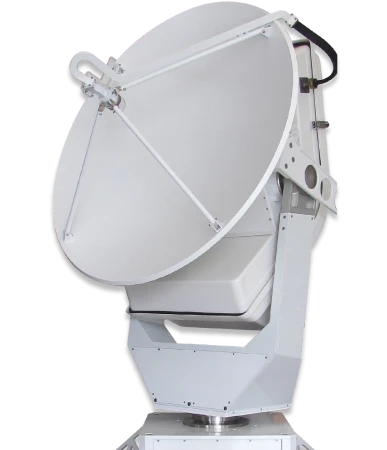

E800 Series Dual Polarization Weather Radar

E800 Series Dual Polarization Weather Radar

The E800 incorporates EWR’s proprietary antenna-mounted RF design which eliminates cumbersome external waveguides and inefficient rotary joints. EWR’s design results in lower infrastructure costs, lower maintenance and increased performance when compared to other solid state radars on the market.

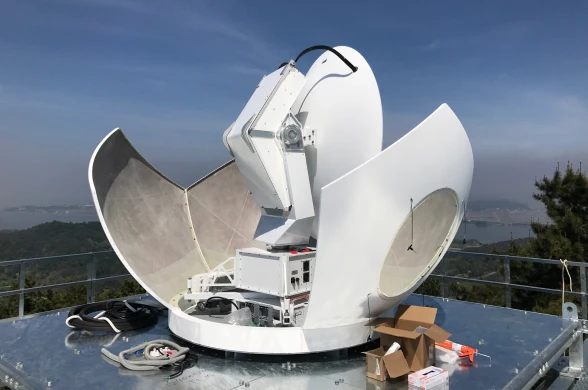

E800 X-Band. Gunsan, South Korea

Field Proven Solid State Transmitter Technology

Many other radars utilize tube transmitters that require frequent maintenance, high voltage and are prone to failure in difficult environments such as those found in mobile applications. EWR uses long life solid-state transmitters, which are virtually maintenance free and consume far less power. EWR Solid State transmitters are frequency adjustable and can be tuned by the user to avoid interference.

The latest E800 transmitter uses a proprietary multi amplifier design that incorporates multiple “next generation” high power amplifiers to provide an extra measure of redundancy in this critical subsystem. This combined with EWR’s Advanced Single Pulse (ASP) Technology, which virtually eliminates the blind range associated with other solid state radar systems, results in a system that outperforms all other solid-state radars on the market today.

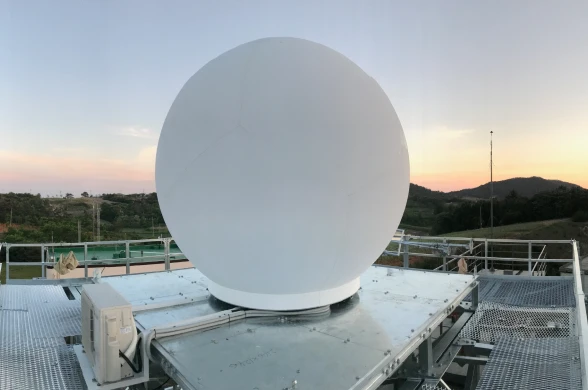

E800 X-Band. Muan, South Korea

Key Advantages

  • Available in X-band and C-band
  • EWR's compact, rugged, antenna-mounted RF design outperforms and outlasts other solid state radars
  • Simultaneous Dual Polarization standard
  • Multiple high resolution Beam Width options
  • Next generation EWR solid state transmitters
  • Wideband, user adjustable transmit frequency
  • Proprietary multi-amplifier design
  • DSP10 Digital Signal Processor
  • Advanced Single Pulse (ASP) Technology eliminates the radar blind range associated with other solid state radars
  • Low power consumption and operating costs
  • The most complete suite of meteorological products available including all EWR/NEXRAD Level III
  • Perfect for creating an affordable network in difficult terrain and metropolitan areas or as a “gap filler” in existing networks
  • Virtually maintenance free, long life design utilizing factory sealed gearboxes and bearings
  • 24/7 365 Day Help Desk Support

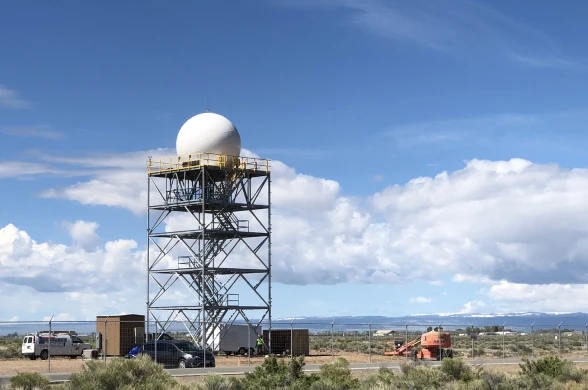

E800 C-Band. Alamosa, CO

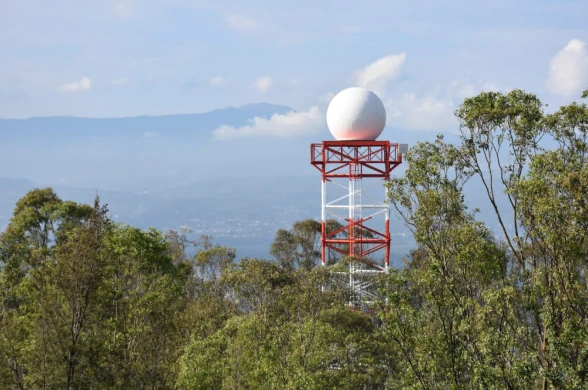

E800 X-Band. Mexico City, Mexico

Revolutionary Design

The E800’s cutting edge design and compact size make it the ideal choice for fixed use in difficult locations or portable applications. The E800’s high resolution also makes the system the perfect solution for “gap filling” in existing networks.

The radar pedestal includes the radar transmitter, receiver, signal processor, server and antenna. EWR’s proprietary design eliminates inefficient rotary joints for optimal system performance and reliability. This architecture also allows the entire system to be installed with only two ruggedized cables greatly simplifying installation and maintenance.

The E800 Series uses the latest DSP10 Digital Signal Processor and WeatherScout® Watch software, delivering radar products and warnings to the user. The WeatherScout® PC Workstation provides all of the user interface and control functionality of the radar.

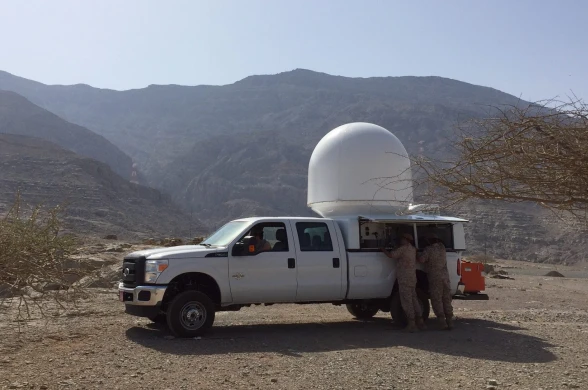

Mobile E800 X-Band Tactical Vehicle
